EPDM foam rubber sealing material with semi closed cellular structure. EC-200 series products are made of semi closed cellular EPDM foam rubber sealing materials. Various types of adhesive layers are available, all taking advantage of the characteristics of elastic foam plastics. These products can be used for waterproofing, sealing, sound insulation, or thermal insulation according to the compression ratio. Obtained UL-94HBF flame resistance standard certification.
Category：
Buffer material
Characteristic：
1.This series of products has excellent flame resistance and has obtained UL-94 flame resistance certification.
2.Low pressure helps with compression; It fits well with uneven surfaces, achieving first-class sealing and sound insulation effects.
3.The excellent heat resistance, weather resistance and ozone resistance make this foam durable, low frosting, and almost no pollution to the adhesive body.

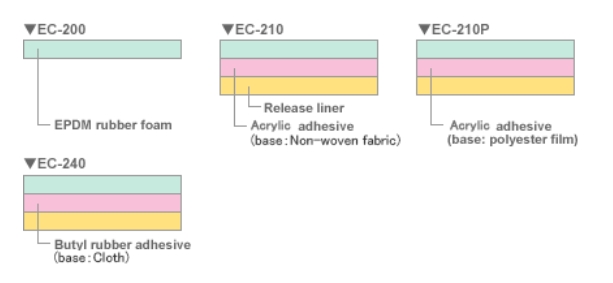

Structure::
Specifications：
|
Thickness [mm] |
Width [mm] |
Length [m] |
|
3-20 (The thickest adhesive product type can reach up to 25 mm) |
1,000 |
2 |
Characteristic::
|
Product number |
Proportion |
Tensile strength |
Extension rate [%] |
Compression hardness [N/cm2] |
|
|
25% |
50% |
||||
|
EC-200 シリーズ |
0.085 |
6.0 |
280 |
0.17 |
0.33 |
[notes]
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
Used for waterproofing, sealing, sound insulation, and thermal insulation of electrical/electronic equipment.
