Easy to use elastic thin foam can be used to eliminate the gap, making the gap as small as 100 μ m.
Category：
Buffer material
Product Features：

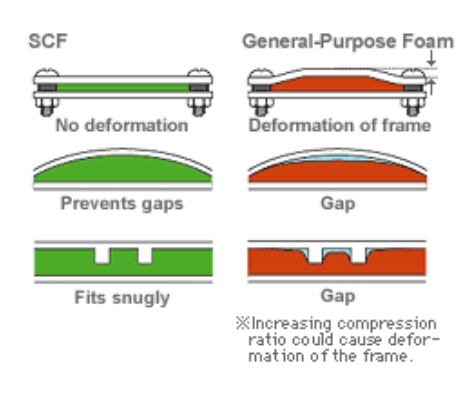

1.The super compression and sealing characteristics can make foam enter into tiny gaps.
2.The super adaptability to bending and uneven shapes enables foam to be used in various new designs.
3.It can be processed in width and thin layer, so the foam can be applied to various complex shapes.
4.Reduce impact force.
5.Good dustproof performance
6.Cleaning; It can minimize pollution to LCD and other components to the greatest extent possible.
7.No environmental load substances or impurities that may contaminate the equipment.
8.Due to the low compression load (pressure), the chassis will not deform after installation.
9.It can fit well on uneven and curved surfaces.
Specifications：
|
Product number |
Thickness [mm] |
Colour |
|
SCF100 |
0.5-1.0 |
Black |
|
SCF200 |
0.5~1.5 |
|
|
SCF400 |
0.3/0.4 |
|
|
P1500 |
0.3～1.5 |
|
|
SCF406PS |
0.23 |
|
|
SCF400T |
0.2 |
|
|
SCF400TT |
0.15 |
|
|
SCF600 |
0.5~1.0 |
[notes]
*We supply tape with a thickness of 0.1 mm.
*We also supply double-sided tape.
*P1500 is a replacement product of P100UL and P200UL, with flame retardant properties.
Characteristic：
|
Product number |
Density [g/cm3] |
50% compression [N/cm2] |
Breaking strength [MPa] |
Causing elongation at break [%] |
Flame retardancy |
|
SCF100 |
0.040 |
1.4 |
1.0 |
210 |
- |
|
SCF200 |
0.030 |
2.4 |
0.93 |
167 |
- |
|
SCF400 |
0.040 |
1.4 |
1.18 |
130 |
- |
|
P1500 |
0.070 |
4.6 |
0.77 |
84 |
UL-94 HF1 (halogen-free) |
|
SCF406PS |
0.040 |
1.4 |
- |
- |
- |
|
SCF400T |
0.060 |
1.6 |
1.4 |
160 |
- |
|
SCF400TT |
0.10 |
1.8 |
1.9 |
180 |
- |
|
SCF600 |
0.050 |
1.0 |
1.09 |
141 |
- |
[notes]
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.

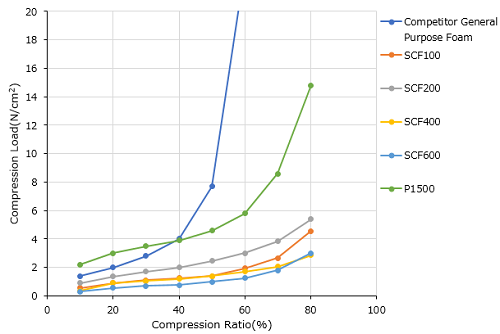

Elasticity：
[test method]
Compression speed: 10 mm/min
Compression ratio (%)=pre compression thickness - post compression thickness/pre compression thickness X 100
