Characteristic：
1.EC-100 series products containing chlorine free flame retardants have obtained UL-94 and HR-1 certification, meeting the strict standards of foam flame resistance. (Only foam parts have obtained UL94 HF-1 certification, and the certification thickness follows the UL yellow card.)
2.Lower pressure helps with compression; It fits well with uneven surfaces, achieving first-class sealing and sound insulation effects.
3.Super heat resistance, weather resistance and ozone resistance make foam durable.

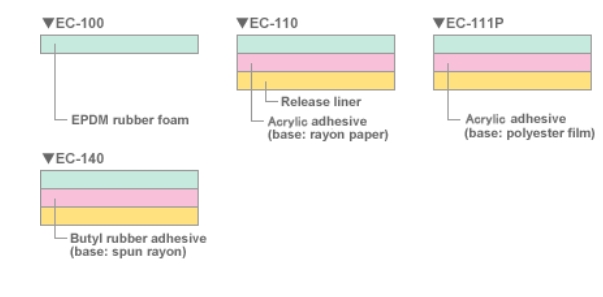

Structure:
Specifications：
|
Thickness [mm] |
Width [mm] |
Length [m] |
|
5-20 (the thickest adhesive product type can reach 25mm) |
1,000 |
2 |
*The width of EC-111P is 900 mm.
Characteristic:
|
Product number |
Proportion |
Tensile strength |
Extension rate[%] |
Compression hardness [N/cm2] |
|
|
25% |
50% |
||||
|
EC-100 系列 |
0.085 |
7.0 |
270 |
0.18 |
0.28 |
[notes]
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
Used for waterproofing, sealing, and insulation of electrical/electronic equipment.
