Sealing materials with strong weather resistance, cold resistance, heat resistance, and chemical resistance. This is a semi closed cellular structure sealing material composed of EPDM synthetic foam rubber. We supply all kinds of products with adhesive layer. According to its compression ratio, we can achieve the effect of waterproof, windproof, dustproof, sound insulation or heat insulation by using the characteristics of elastic foam plastic.
Category：
Buffer material
Characteristic：
1. Reduce VOC (volatile organic compound) emissions to make them suitable for vehicle or house interiors.
2. Low compressive stress enables it to adhere well to irregular surfaces, achieving excellent airtightness and sound insulation effects.
3. After long-term use, it still has excellent heat resistance, cold resistance, ozone resistance, low frost resistance, and almost no pollution to the bonded body.

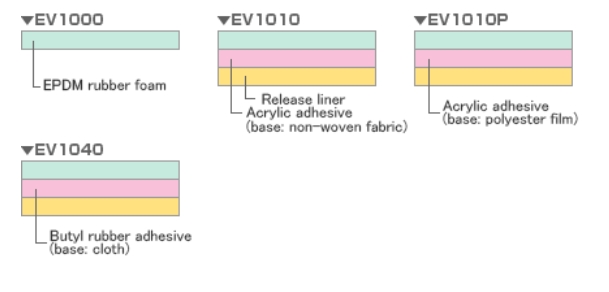

Structure:
Standard size：
|
Thickness [mm] |
Width [mm] |
Length [m] |
|
3-20 (with adhesive 3-25) |
1,000 |
2 |
Characteristic:
Compliant with JIS K 6767 standard
|
Product Code |
Apparent density (g/cm3) |
Tensile strength |
Extension rate [%] |
Compression hardness [N/cm2] |
|
|
25% |
50% |
||||
|
EV1000 series |
0.07 |
5.0 |
400 |
0.23 |
0.35 |
【Note】
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
1. Air tightness, sound insulation, and heat insulation inside the car
2. Air tightness and insulation inside residential buildings
