The semi closed cellular foam sealing material has toughness, elasticity, weather resistance and water tightness. No.685 series products are foam sealing materials with strong performance, which are composed of EPDM foam rubber with semi closed cellular structure. The durability and weather resistance of this foam rubber rank first among all general rubbers. Due to being made of flexible materials, these products have excellent waterproof and sealing properties. The No.685 series products include tape materials coated with rubber adhesive and acrylic adhesive. You can choose the type that meets your needs.
Category：
Buffer material
Characteristic：
1. It has super durability and weather resistance, cold and heat resistance (-20 ° C to 100 ° C), and chemical resistance (acid and alkali).
2. The compression load (pressure) is relatively light, so there will be no structural deformation after foam filling.
3. Flexible materials are easy to use when compressed.
4. The specific gravity is as low as 0.095; The foam sheets will not fuse.

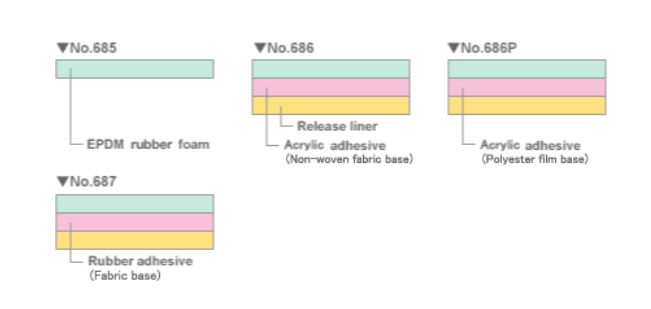

Structure:
Specifications：
|
Thickness [mm] |
Width [mm] |
Length [m] |
|
3-35 |
1,000 |
2 |
Characteristic:
|
Product Code |
proportion |
Tensile strength [N/cm2] |
Extension rate [%] |
Compression hardness [N/cm2] |
|
|
25% |
50% |
||||
|
No.685 series |
0.13 |
10 |
550 |
0.39 |
0.60 |
[Note]
*The above data are all sample measurement values, so their actual performance cannot be guaranteed.
Application：
1. Seal the air conditioning duct.
2. Used for objects/places with high waterproof requirements.
3. Used for installing instrument panels and windshields.
4. Used for installing mirrors and center pillars.
