EPDM Made from foam foam free flexible sealant and can be used to prevent metal corrosion. The flexible sealing material made of EPDM rubber has a semi closed cavity structure after foaming. This is a clean foam that does not contain sulfur, which is widely used for vulcanization of rubber, but can corrode metals. It can be used for vibration control, soundproofing and dustproof applications around airtight electronic equipment and does not corrode metal.
Category：
Buffer material
Features:：

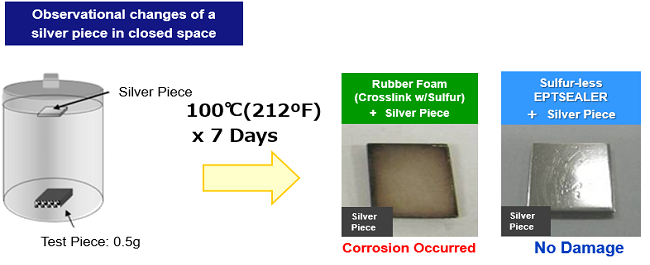

1.Sulfur free foam has super resistance to metal corrosion.
2.Easy to compress and firmly adhere to uneven surfaces, with excellent air tightness and sound insulation performance.
3.Superb durability, weather resistance, heat resistance, and chemical resistance.
4.The foam layer is certified as UL-94HBF flame retardant. (The certified thickness follows the UL Yellow Card standard.)

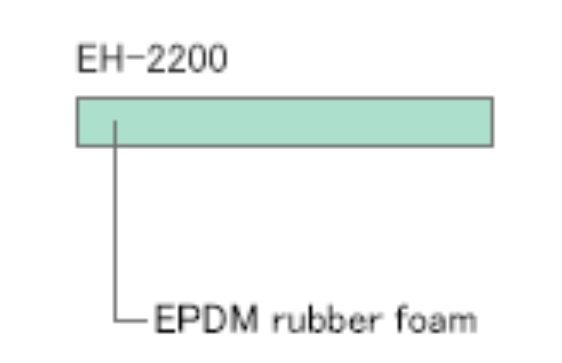

Structure:
Standard size：
|
Thickness [mm] |
Width [mm] |
Length [m] |
|
3-20 (3-25 when applying adhesive) |
900 |
2 |
characteristic:
|
Product number |
Compression hardness |
Apparent density |
Tensile strength [%] |
Extension rate [N/cm2] |
|
|
50% |
80% |
||||
|
EH-2200 |
0.11 |
6.0 |
270 |
0.22 |
1.30 |
【notes】
*The above data are only sample measurement values, so their actual performance cannot be guaranteed.

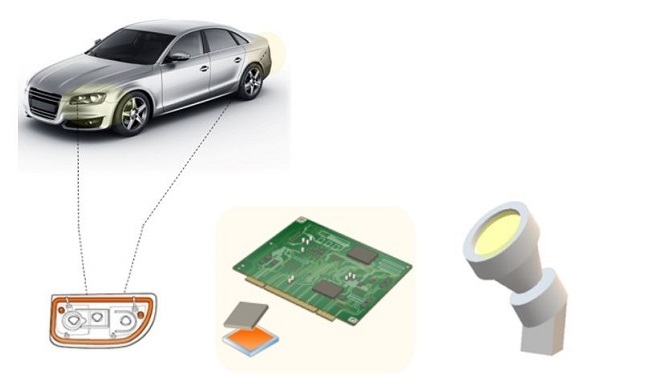

Application
1.Electronic devices and circuit boards for various household appliances
2.LED lighting fixtures
