Excellent heat resistance, sustained release, mechanical strength. Heat release and release performance of the heat seal device is improved. Glass cloth substrate sintered and sintered in polytetrafluoroethylene (PTFE) dispersion. This tape is a single surface treatment tape coated with silicone resin adhesive having a high heat resistance and mechanical strength.
Category：
High Temperature Resistant Material
Characteristic：
1. Obtain UL510 certification.
2. Environmentally friendly and in compliance with Notice No. 20 of the Ministry of Health, Labour and Welfare.
3. Strong demolding and sliding properties.
4. It has good retention and dimensional stability at high temperatures.
5. The non adhesive side of the tape has excellent characteristics of polytetrafluoroethylene, such as electrical properties, heat resistance, weather resistance, chemical resistance, waterproofing (dehydration), and non adhesiveness.

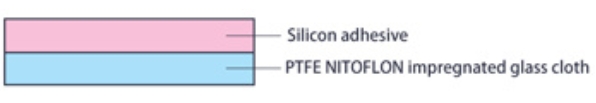

Structure:
Characteristic:
|
Project |
Company |
No.973UL-S |
No.973UL |
Test method |
||
|
Thickness |
mm |
0.13 |
0.15 |
0.18 |
JIS C 2107 standard applies: |
|
|
Tensile Strength |
N/19 mm |
240 |
590 |
530 |
||
|
Adhesive strength |
25°C |
N/19 mm |
6.8 |
9.0 |
9.7 |
|
|
100°C |
3.2 |
3.9 |
4.7 |
|||
|
150°C |
2.2 |
2.6 |
3.0 |
|||
|
Unfolding Force |
N/19 mm |
5.9 |
5.9 |
7.5 |
||
|
Temperature Range |
°C |
-60 - 200 |
- |
|||
【Note】
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
1. Used for heat-resistant masking.
2. Used for heat sealing.
3. Used for heat-resistant electrical insulation.
