No. 923ut is a tape containing a fluorine plastic (PTFE) film and a silicone resin adhesive. The total thickness of this thin tape is 0.04 mm, which has excellent tensile strength and small elongation. There are excellent heat resistance, electrical insulation and sliding characteristics.
Category：
High Temperature Resistant Material
Characteristic：
The total thickness of this thin tape is 0.04 mm, with excellent tensile strength and low elongation.
It also has excellent heat resistance, electrical insulation, sliding characteristics, waterproofing, and adhesive elimination properties.

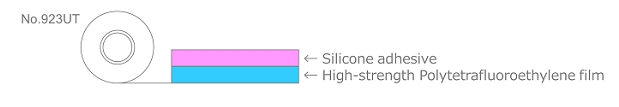

Structure:
Characteristic:
|
Project |
Company |
Characteristic value |
|
Total thickness |
mm |
0.04 |
|
180 ° peel strength |
N/19 mm |
3.7 |
|
Tensile Strength |
N/19 mm |
65 |
|
Extension Rate |
% |
45 |
|
Breakdown Voltage |
kV |
5.3 |
|
Flame retardancy |
- |
UL510 flame retardant (document number E34833) |
|
Colour |
- |
Brown |
|
Working temperature range |
℃ |
-60-200 |
*This data represents an example of measured values, rather than guaranteed achievable values.
Application：

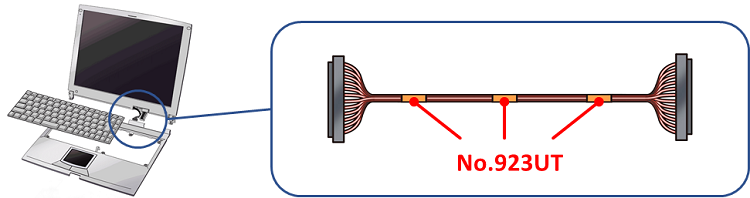

1. Wiring cables for mobile devices (for protection and insulation)
2. Improve the viscosity elimination characteristics during the molding process
3. Electrical insulation of cables and coils
