The multi-functional tape has good adhesion strength, ductility, chemical resistance and heat resistance. The base material of this silicone resin tape is PTFE (polytetrafluoroethylene). This tape has high adhesion strength, has ductility, chemical resistance, weather resistance, electrical insulation and heat resistance, and can be used in various environments.
Category：
High Temperature Resistant Material
Characteristic：
1. Complies with UL-510 regulations, has heat resistance, can withstand rated temperatures up to 180 ℃, and complies with Canada's CSA C-22-2 standard.
2. P-422 complies with the US federal standards CID-A-59474A and ASTM D2686. The compliance of P-422 with Boeing's regulations has been recognized. (BAC5034 Type IV/BAC5157/BAC5241/BAC5317/BAC5332/BAC5514/BAC5548/BAC5578/BAC5597)
3. The substrate of this tape is polytetrafluoroethylene, which has good strength, ductility, chemical resistance, and weather resistance. It has a wide range of applications and can be used as a wiring harness and heat-resistant masking tape for aircraft components.
Characteristic:
|
Base Material |
Polytetrafluoroethylene (PTFE) |
|
Adhesive |
Silicone adhesive |
|
Colour |
Grey |
|
Tape Thickness |
100 μm |
|
Tensile strength of adhesive tape |
49N/10 mm |
|
Tape extension rate |
133% |
|
Adhesive strength on stainless steel plate |
2.8 N/10 mm |
|
breakdown voltage |
10.5 kV |
|
UL510 standard heat resistance level temperature |
180℃ |
Application：

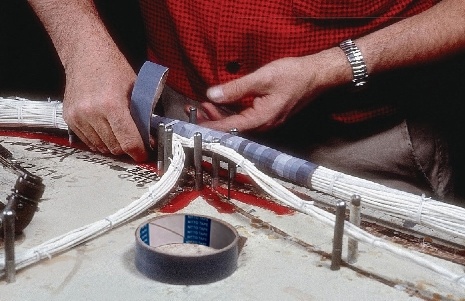

1. Used for heat-resistant and insulated wire harnesses
2. Used for insulation of motors, coils, etc.
3. Used for heat-resistant shielding
4. Various heat-resistant demolding methods
5. Apply the characteristics of PTFE to sliding components, etc.
