It is used for lap polyethylene laminators. The substrate of nitofrunner No. 923 UL tape is nitofonno 920 UL (oriented polytetrafluoroethylene film). This tape is a single surface treatment tape and is coated with a silicone resin adhesive having a high heat resistance. This tape has excellent characteristics such as electrical characteristics, heat resistance, chemical resistance and non adhesion.
Category：
High Temperature Resistant Material
Features：
1.The adhesive free surface of the adhesive tape has excellent features of polytetrafluoroethylene such as electrical properties, weather resistance, chemical resistance, waterproofing (dehydration), and non cohesion. Strong tensile strength.
3.Strong flame retardant.

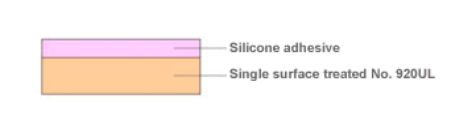

Structure:
Property:
|
N0.923 UL |
|||
|
Property |
Unit |
Eigenvalue |
|
|
Situation |
mm |
0.10 |
|
|
All the way |
N/19 mm |
100 |
|
|
Delamination strength |
Case of stainless steel plate |
N/19 mm |
6.4 |
|
Tengyo |
N/19 mm |
5.3 |
|
|
Blake down |
kV |
11.2 |
|
|
Oshitake |
°C |
-60 - 200 |
|
[Notes]
*The actual measurements are not guaranteed because the data described is only exemplary measurement data.
Apply：
1.Laminate for winding polyethylene (suitable for lamination and laminate laminates in relatively short time because it is easy to replace the tape).
2.The endless belt for the polyethylene laminated machine (the adhesive layer of No. 923s is adhered to the adhesive surface of nitofon No. 923ul or 923s in accordance with the application of the application, and the two bonded endless belt is made to shorten the time for replacing the tape according to the dimensional change of the laminated product).
3.It can be used as an H-grade insulating material for Coyle insulation.
4.A general sliding material can be laminated with metals, plastics and ceramics.
