The orientation PTFE tape is excellent in tensile strength and fire resistance. The substrate of nitofon No. 923 SL tape is polytetrafluoroethylene (PTFE) film. This tape is a single surface treatment tape and is coated with a silicone resin adhesive having a high heat resistance. The tape has excellent characteristics such as excellent electrical characteristics, heat resistance, chemical resistance and non cohesion.
Category：
High Temperature Resistant Material
Characteristic：
1.The non adhesive side of the tape has excellent characteristics of polytetrafluoroethylene (PTFE), such as electrical properties, heat resistance, weather resistance, chemical resistance, waterproofing (dehydration), and non adhesiveness.
2. Superb tensile strength.
3. Super strong flame retardancy.
4. It can be used within the temperature range of -60 ° C to 200 ° C, however, the characteristics of the tape may vary depending on the usage conditions.

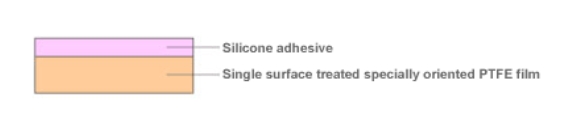

Structure:
Characteristic:
|
N0.923 SL |
|||
|
Characteristic: |
Company |
Characteristic value |
|
|
Thickness |
mm |
0.17 |
|
|
Tensile Strength |
N/19 mm |
280 |
|
|
Peel strength |
Stainless steel plate |
N/19 mm |
7.9 |
|
Unfolding Force |
N/19 mm |
7.1 |
|
|
Breakdown Voltage |
kV |
19.0 |
|
|
Temperature Range |
°C |
-60 - 200 |
|
[Note]
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
1. Used for wrapping polyethylene laminating machines (due to the tape's super durability and mechanical strength, it is durable).
2. Circular tape for polyethylene laminating machine (depending on the application, paste NITOFLON No.923UL or 923S and shorten the time to replace the tape according to the size changes of the laminated product by making double-layer circular tape.)
3. Can be used as H-grade insulation material for coil insulation.
4. It can be used as a general sliding material and laminated together with metals, plastics, and ceramics.
