Glass Cross tape has strong viscosity and heat resistance. No. 188 UL H It is made of glass cloth coated with pressure sensitive silicone resin adhesives with class heat resistance and mechanical strength (UL certification acquisition). In addition to the cord fixing and bundles, 1818ul is an excellent heat resistant masking tape.
Category：
Thermal Insulation Material
Characteristic：
Strong mechanical strength, three times stronger than cotton or acetate cloth.
Even after continuous heating to 180 ° C, it still maintains stable electrical performance for a long time.
Obtained UL-510FR certification.
Good dimensional stability. Less affected by high temperature and humidity than other plastics.

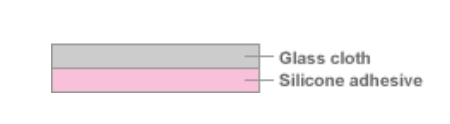

Structure:
Characteristic:
|
Product Code |
Thickness [µ m] |
Length [m] |
Colour |
|
|
Backing |
Total thickness |
|||
|
No.188UL |
130 |
180 |
33 |
白 |
|
Product Code |
Peel strength [N/19mm] |
Tensile strength [N/19mm] |
Extension rate [%] |
Breakdown voltage (kV) |
Electrolytic corrosion coefficient |
|
No.188UL |
6.7 |
600-620 |
5 |
3.5 |
0.96 |
[Note]
*The above data are sample measurements, therefore their actual performance cannot be guaranteed.
Application：
1. Used for external/interlayer insulation of heat-resistant transformers.
2. Package external components.
3. Used for external insulation and binding of coils.
